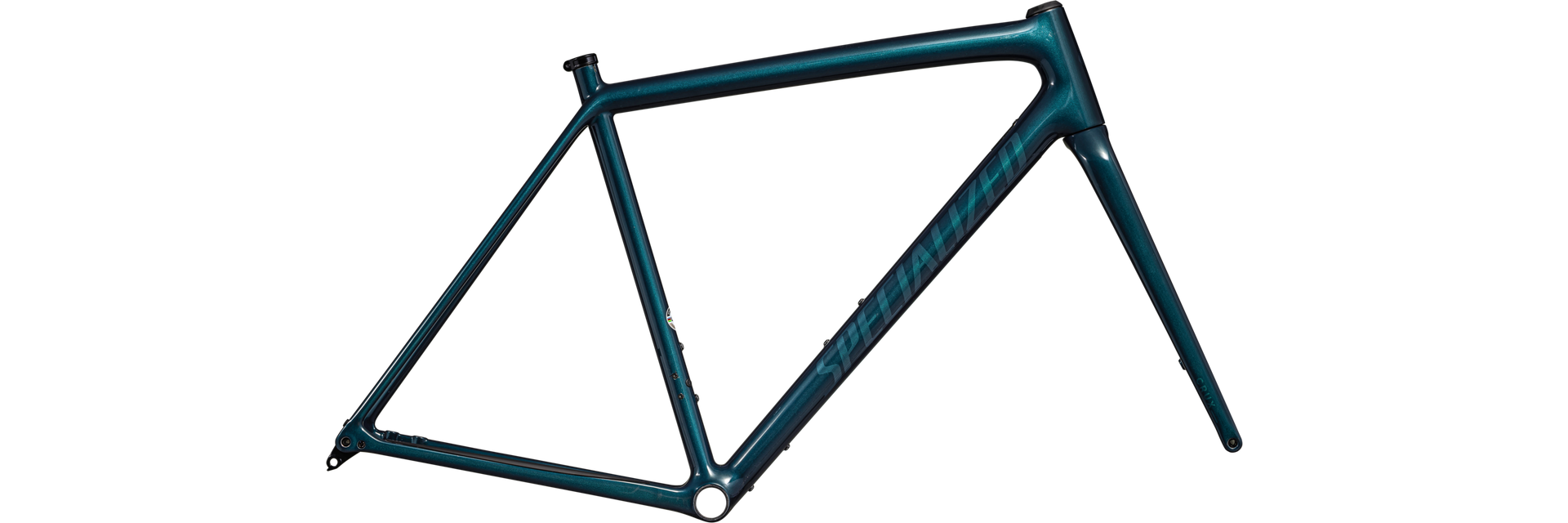

Rám cyklokros SPECIALIZED CRUX 10R dplakemet/grnprlr
Skladom
Viac informácií
- RÁM
- Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, hmotnosť 825g pri veľkosti 54
- VIDLICE
- S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
- OBJÍMKA
- SEAT COLLAR, KCNC, SPL-SC02-300-02, EXTRUDED, 7075-T73, 30.0MM, 10B21, BLACK ZINC BOLT, BOLT CLAMP TYPE
Geometrie
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| Seatpost Length | 325mm | 375mm | 438mm | 438mm | 478mm | |
| Stack | 530 | 547 | 560 | 578 | 598 | 621 |
| Reach | 375 | 382 | 388 | 397 | 405 | 415 |
| Head Tube Length | 100 | 115 | 130 | 147 | 167 | 190 |
| Head Tube Angle | 70.5 | 71.25 | 71.5 | 72 | 72.25 | 72.5 |
| BB Height | 284 | 284 | 286 | 286 | 286 | 286 |
| BB Drop | 74 | 74 | 72 | 72 | 72 | 72 |
| Trail | 74 | 69 | 67 | 64 | 62 | 60 |
| Fork Length, Full | 401 | 401 | 401 | 401 | 401 | 401 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Front Center | 594 | 600 | 608 | 618 | 630 | 644 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1008 | 1014 | 1023 | 1033 | 1045 | 1059 |
| Top Tube Length, Horizontal | 512 | 539 | 549 | 568 | 582 | 599 |
| Bike Standover Height | 749 | 772 | 794 | 816 | 841 | 866 |
| Seat Tube Length | 466 | 496 | 521 | 546 | 576 | 606 |
| Seat Tube Angle | 75.5 | 74 | 74 | 73.5 | 73.5 | 73.5 |
